Siku

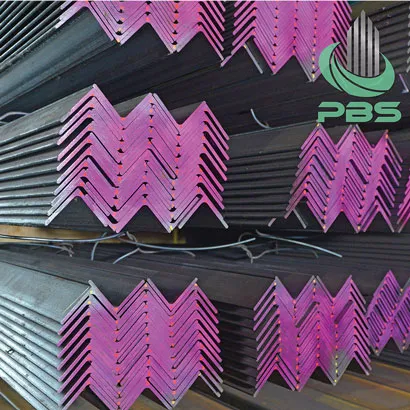

Sebutan lain dari Besi Siku adalah Angle Bar. Berbentuk siku yang terjadi dr pertemuan dua garis yg tegak lurus satu sama lain dengan besar sudut 90 derajat atau seperti Huruf L. Memiliki ukuran kaki dan ketebalan yang bervariasi sehingga bisa disesuaikan dengan kebutuhan.
Deskripsi
Umumnya digunakan untuk :
pembuatan menara komunikasi dan menara listrik. Juga digunakan sebagai bahan produk industri, bangunan, furniture, dan konstruksi yang banyak dipakai oleh kontraktor dan fabrikasi seperti bengkel las atau bengkel bubut.

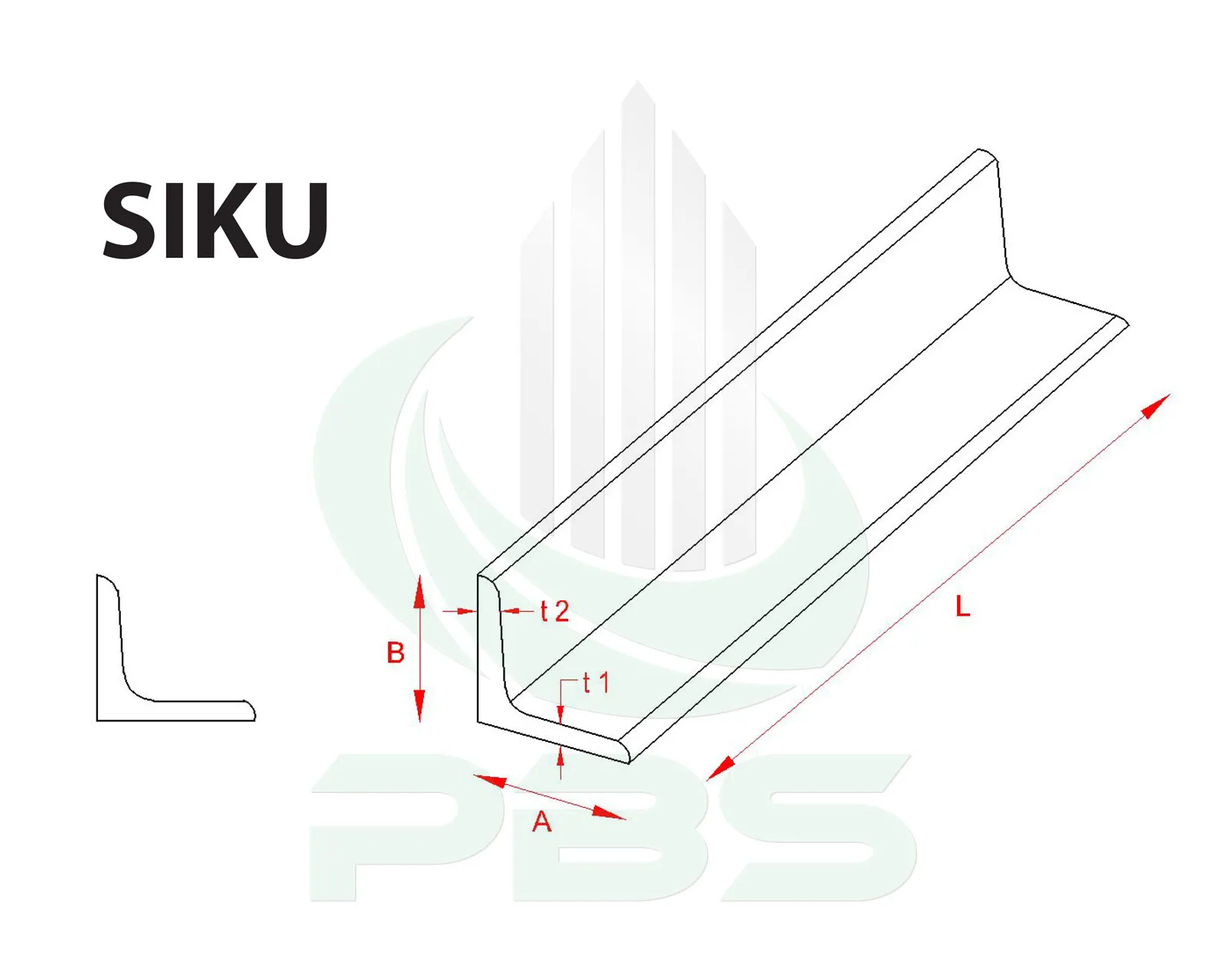

Sisi Kiri (A) x Sisi Kanan (B) x Tebal (t) x Panjang (L)
Ukuran dan Spesifikasi
| Name | Sisi A (mm) | Sisi B (mm) | Tebal (mm) | Panjang (M) | Berat (Kg) |
|---|---|---|---|---|---|
| 30mm x 30mm x 3mm x 6M EQ IE | 28 | 28 | 2.8 | 6 | 6.5 |
| 30mm x 30mm x 3mm x 6M EQ Y | 28 | 28 | 2.8 | 6 | 7 |
| 30mm x 30mm x 3mm x 6M STD A W | 24 | 24 | 1.4 | 6 | 2.5 |
| 30mm x 30mm x 3mm x 6M STD A X | 24 | 24 | 1.3 | 6 | 2.4 |
| 30mm x 30mm x 3mm x 6M STD P O | 28 | 28 | 2.8 | 6 | 6 |
| 30mm x 30mm x 3mm x 6M STD P W | 28 | 28 | 2.4 | 6 | 4.5 |
| 30mm x 30mm x 3mm x 6M STD P X | 28 | 28 | 2.3 | 6 | 4 |
| 30mm x 30mm x 3mm x 6M STD P Z | 28 | 28 | 1.7 | 6 | 3.6 |
| 30mm x 30mm x 3mm x 6M STD X E | 28 | 28 | 1.8 | 6 | 3.5 |
| 40mm x 40mm x 4mm x 6M A Y | 34 | 34 | 1.7 | 6 | 4.5 |
| 40mm x 40mm x 4mm x 6M EQ | 38 | 38 | 3.8 | 6 | 13 |
| 40mm x 40mm x 4mm x 6M ISPAT SS 400 | 38 | 38 | 3.8 | 6 | 14.52 |
| 40mm x 40mm x 4mm x 6M KS SS 400 | 38 | 38 | 3.8 | 6 | 14.52 |
| 40mm x 40mm x 4mm x 6M STD X I | 38 | 38 | 3.6 | 6 | 10 |
| 40mm x 40mm x 4mm x 6M STD X W | 38 | 38 | 3.4 | 6 | 9 |
| 40mm x 40mm x 4mm x 6M STD X X | 38 | 38 | 3.3 | 6 | 8 |
| 40mm x 40mm x 4mm x 6M STD X Y | 38 | 38 | 3.7 | 6 | 11 |
| 40mm x 40mm x 4mm x 6M STD X Z | 38 | 38 | 3 | 6 | 7 |
| 40mm x 40mm x 4mm x 6M STD Y E | 38 | 38 | 3 | 6 | 7.5 |
| 50mm x 50mm x 4mm x 6M STD Y Z | 44 | 44 | 2.2 | 6 | 7 |
| 50mm x 50mm x 5mm x 6M KS SS 400 | 48 | 48 | 4.8 | 6 | 22.68 |
| 50mm x 50mm x 5mm x 6M EQ | 48 | 48 | 4.8 | 6 | 20 |
| 50mm x 50mm x 5mm x 6M ISPAT SS 400 | 48 | 48 | 4.8 | 6 | 22.68 |
| 50mm x 50mm x 5mm x 6M STD A A | 48 | 48 | 3.5 | 6 | 11 |
| 50mm x 50mm x 5mm x 6M STD A W | 48 | 48 | 4 | 6 | 14 |
| 50mm x 50mm x 5mm x 6M STD W I | 48 | 48 | 4.6 | 6 | 18 |
| 50mm x 50mm x 5mm x 6M STD W P | 48 | 48 | 4.2 | 6 | 15 |
| 50mm x 50mm x 5mm x 6M STD X I | 48 | 48 | 3.6 | 6 | 12 |
| 50mm x 50mm x 5mm x 6M STD Y E | 44 | 44 | 2.5 | 6 | 7.5 |
| 50mm x 50mm x 6mm x 6M ISPAT SS 400 | 48 | 48 | 5.8 | 6 | 27.58 |
| 60mm x 60mm x 6mm x 6M ISPAT SS 400 | 58 | 58 | 5.8 | 6 | 32.52 |
| 60mm x 60mm x 6mm x 6M KS SS 400 | 58 | 58 | 5.8 | 6 | 32.52 |
| 60mm x 60mm x 6mm x 6M EQ | 58 | 58 | 5.8 | 6 | 31 |
| 60mm x 60mm x 6mm x 6M STD E O | 58 | 58 | 5.8 | 6 | 30 |
| 60mm x 60mm x 6mm x 6M STD E W | 58 | 58 | 5.4 | 6 | 28 |
| 60mm x 60mm x 6mm x 6M STD W E | 58 | 58 | 4.5 | 6 | 24 |
| 60mm x 60mm x 6mm x 6M STD W O | 58 | 58 | 4.8 | 6 | 25 |
| 65mm x 65mm x 6mm x 6M ISPAT SS 400 | 63 | 63 | 5.8 | 6 | 35.46 |
| 65mm x 65mm x 6mm x 6M STD E I | 63 | 63 | 536 | 6 | 31 |
| 70mm x 70mm x 6mm x 6M EQ | 68 | 68 | 5.8 | 6 | 36 |
| 70mm x 70mm x 6mm x 6M ISPAT SS 400 | 68 | 68 | 5.8 | 6 | 38.28 |
| 70mm x 70mm x 7mm x 6M EQ | 68 | 68 | 6.8 | 6 | 44 |
| 70mm x 70mm x 7mm x 6M ISPAT SS 400 | 68 | 68 | 6.8 | 6 | 44.28 |
| 70mm x 70mm x 7mm x 6M KS SS 400 | 68 | 68 | 6.8 | 6 | 44.28 |
| 75mm x 75mm x 6mm x 6M STD E E | 73 | 73 | 5.5 | 6 | 36 |
| 75mm x 75mm x 6mm x 6M STD E O | 73 | 73 | 5.8 | 6 | 39 |
| 75mm x 75mm x 7mm x 6M EQ | 73 | 73 | 6.8 | 6 | 45 |
| 80mm x 80mm x 8mm x 6M EQ | 78 | 78 | 7.8 | 6 | 56 |
| 80mm x 80mm x 8mm x 6M ISPAT SS 400 | 78 | 78 | 7.8 | 6 | 57.96 |
| 90mm x 90mm x 9mm x 6M ISPAT SS 400 | 88 | 88 | 8.8 | 6 | 73.2 |
| 90mm x 90mm x 9mm x 6M KS SS 400 | 88 | 88 | 8.8 | 6 | 73.2 |
| 90mm x 90mm x 9mm x 6M STD U P | 88 | 88 | 8.8 | 6 | 73.2 |
| 100mm x 100mm x 8mm x 6M ISPAT SS 400 | 98 | 98 | 7.8 | 6 | 90.6 |
| 100mm x 100mm x 8mm x 6M KS SS 400 | 98 | 98 | 7.8 | 6 | 90.6 |
| 100mm x 100mm x 10mm x 6M ISPAT SS 400 | 98 | 98 | 9.8 | 6 | 73.2 |
| 100mm x 100mm x 10mm x 6M KS SS 400 | 98 | 98 | 90.6 | 6 | 73.2 |
